Mobile and Efficient Ventilation
Smart Cooling
Benefits
Effective cooling
The fan uses an evaporative cooling system that filters dust and produces a cool breeze without generating mist.
UVC Light for sterilization
Features a submergible UVC lamp that kills 99% of bacteria in the water in 1-5 seconds, improving the air quality (option, non-standard).
Energy and maintenance efficient
High air volume and efficient cooling with low energy consumption, requiring less maintenance.
Easy cleaning
Designed for easy cleaning and access.
Mobility
Features wheels for easy relocation and transport.
Inverter motor
Helps save energy and allows for a high range in fan speed modulation.
Eco-friendly
Does not require refrigerants to cool, helping the environment.
Savings
Operational cost is minimal (300-1100 watts/hr), depending on model. A normal laptop consumes 60-300 watts/hr.
Fans

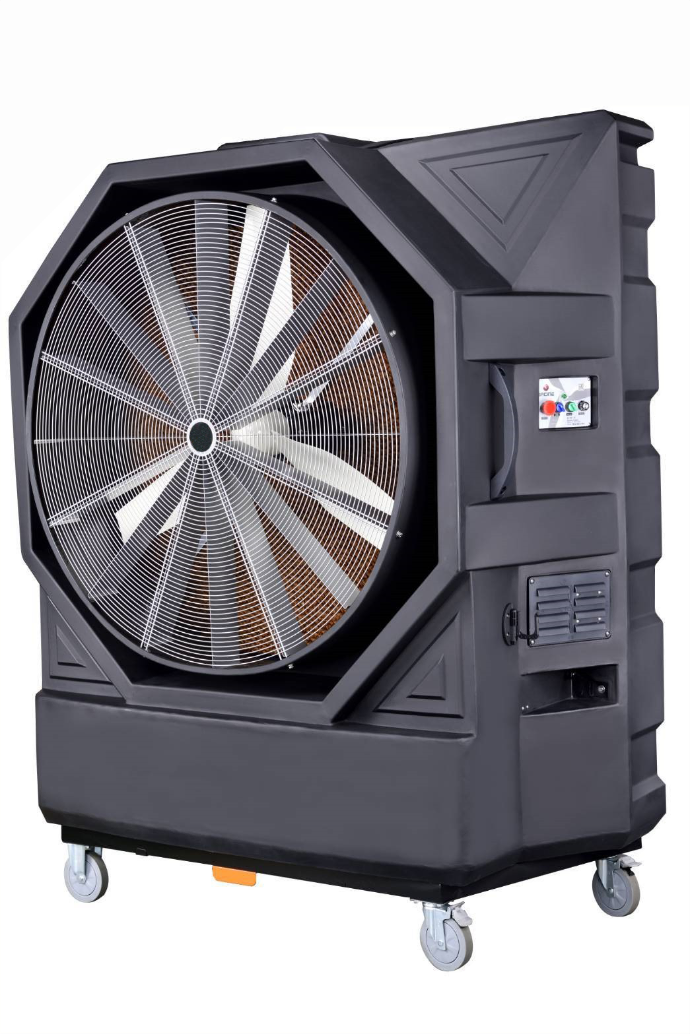

BW500M28-2-2HP
Voltage: 1 §, 220V, 50 / 60Hz
Blade: 50”3 SMC Fiberglass
Inverter: 3HP
Motor: 2 HP
Energy consumption: AC: 1085 W/H ± 10% PMSM: 850 W/H ± 10%
Current (Max): AC: 7.4A±10% PMSM 5.1A ± 10%
Speed (Max): 660 RPM (Variable)
Swinging shutters: X
Cooling capacity: 5382 s.f.
Airflow: 48000 CMH, 28252 CFM
Wind distance: Over 30m
Weight: 353 lbs
Water tank: 61 G
Dimensions: 79” x 71” x 35”

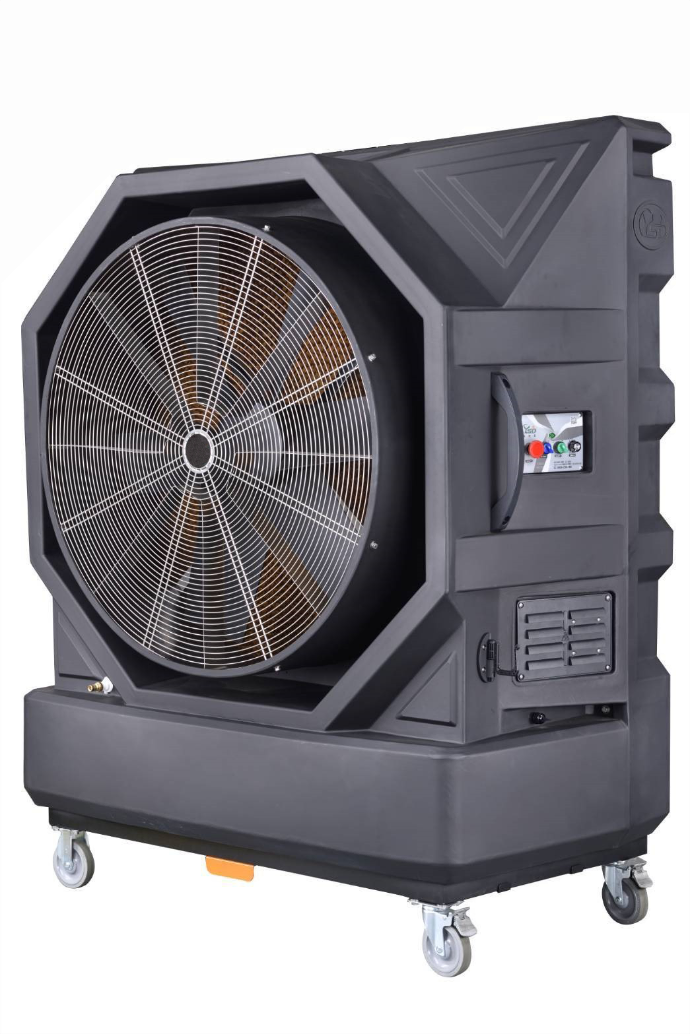

BW300M18-2-1.5HP
Voltage: 1 §, 220V, 50 / 60Hz
Blade: 42”3 Nylon 6 + Fiber
Inverter: 2HP
Motor: 1.5HP
Energy consumption: AC: 800 W/H ± 10% PMSM: 580 W/H ± 10%
Current (Max): AC: 4.9A±10% PMSM 3.8A ± 10%
Speed (Max): 540 RPM (Variable)
Swinging shutters: X
Cooling capacity: 3229 s.f.
Airflow: 32000 CMH, 18835 CFM
Wind distance: Over 20m
Weight: 265 lbs
Water tank: 48 G
Dimensions: 73” x 61” x 32”

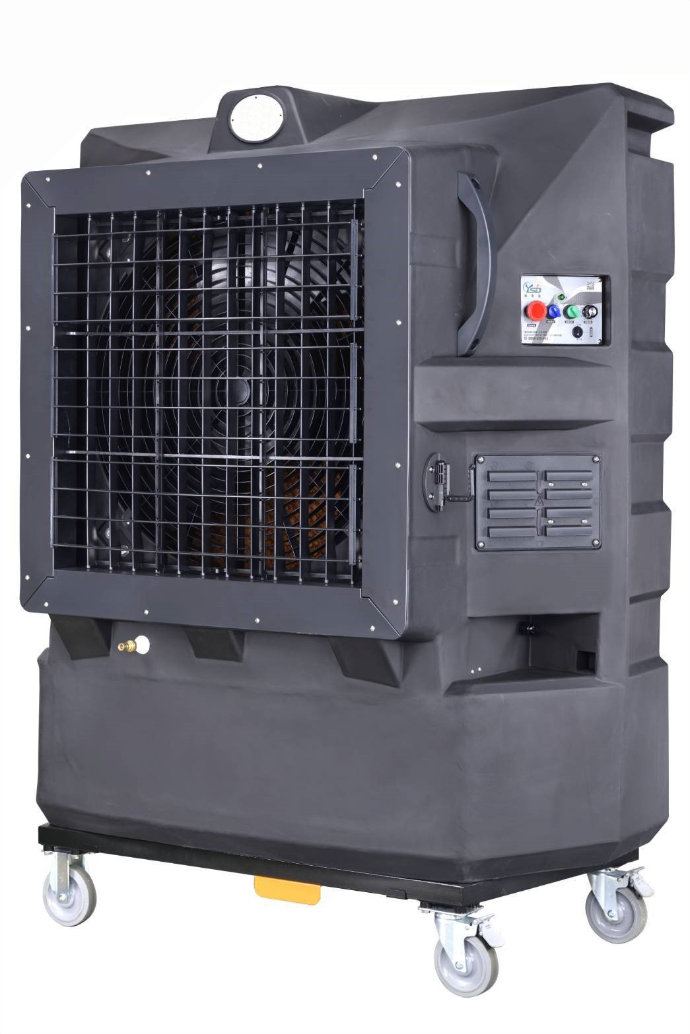

BW250M15-1-1/2HP
Voltage: 1 §, 110V, 50 / 60Hz
Blade: 30”3 PP + Fiber
Inverter: 1.5HP
Motor: 1/2HP
Energy consumption: AC: 695 W/H ± 10% PMSM: 615 W/H ± 10%
Current (Max): AC: 8.8A±10% PMSM 7.3A ± 10%
Speed (Max): 1100 RPM (Variable)
Swinging shutters: Opcional
Cooling capacity: 2690 s.f.
Airflow: 25000 CMH, 14714 CFM
Wind distance: Over 15m
Weight: 220 lbs
Water tank: 45 G
Dimensions: 68” x 52” x 27”

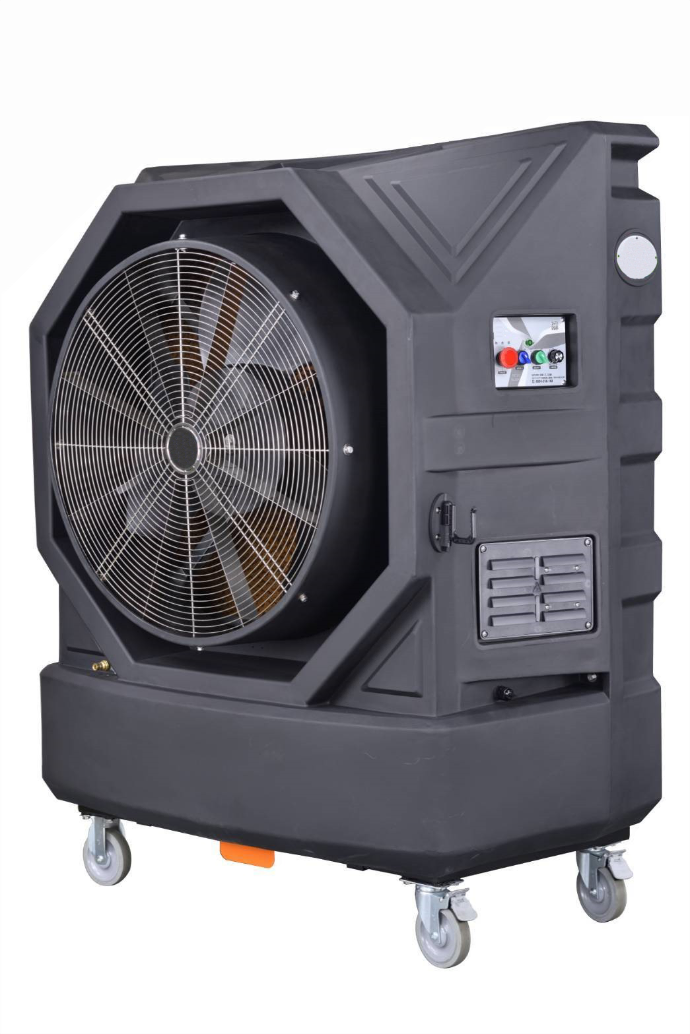

BW220M13-1-1/2HP
Voltage: 1 §, 110V, 50 / 60Hz
Blade: 30”3 Nylon 6 + Fiber
Inverter: 1.5HP Motor: 1/2HP
Energy consumption: AC: 740 W/H ± 10%
Current (Max): AC: 9.3A±10%
Speed (Max): 1000 RPM (Variable)
Swinging shutters: X
Cooling capacity: 2368 s.f.
Airflow: 22000 CMH, 12949 CFM
Wind distance: Over 20m
Weight: 198 lbs
Water tank: 38 G
Dimensions: 63" x 49" x 28"
BW160M10-1-1/2HP
Voltage: 1 §, 110V, 50 / 60Hz
Blade: 24”3 PP + Fiber
Inverter: 1.5HP
Motor: 1/2HP
Energy consumption: AC: 630 W/H ± 10%
Current (Max): AC: 8A±10%
Speed (Max): 1100 RPM (Variable)
Swinging shutters: Opcional
Cooling capacity: 1722 s.f.
Airflow: 18000 CMH, 10594 CFM
Wind distance: Over 15m
Weight: 165 lbs
Water tank: 32 G
Dimensions: 56" x 39" x 28"

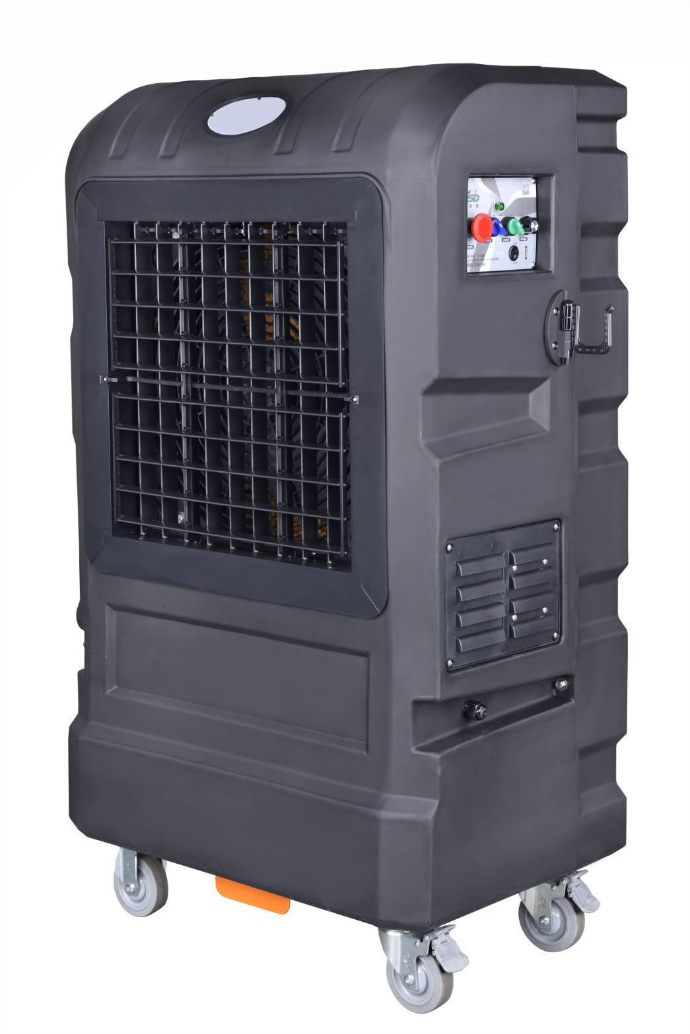

BW120M8-1-1/3HP
Voltage: 1 §, 110V, 50 / 60Hz
Blade: 18”3 Nylon 6 + Fiber
Inverter: 0.75 HP
Motor: 1/3HP
Energy consumption: AC: 420 W/H ± 10%
Current (Max): AC: 6.1A±10%
Speed (Max): 1380 RPM (Variable)
Swinging shutters: Opcional
Cooling capacity: 1292 s.f.
Airflow: 14000 CMH, 8240 CFM
Wind distance: Over 15m
Weight: 99 lbs
Water tank: 16 G
Dimensions: 53" x 29" x 20"

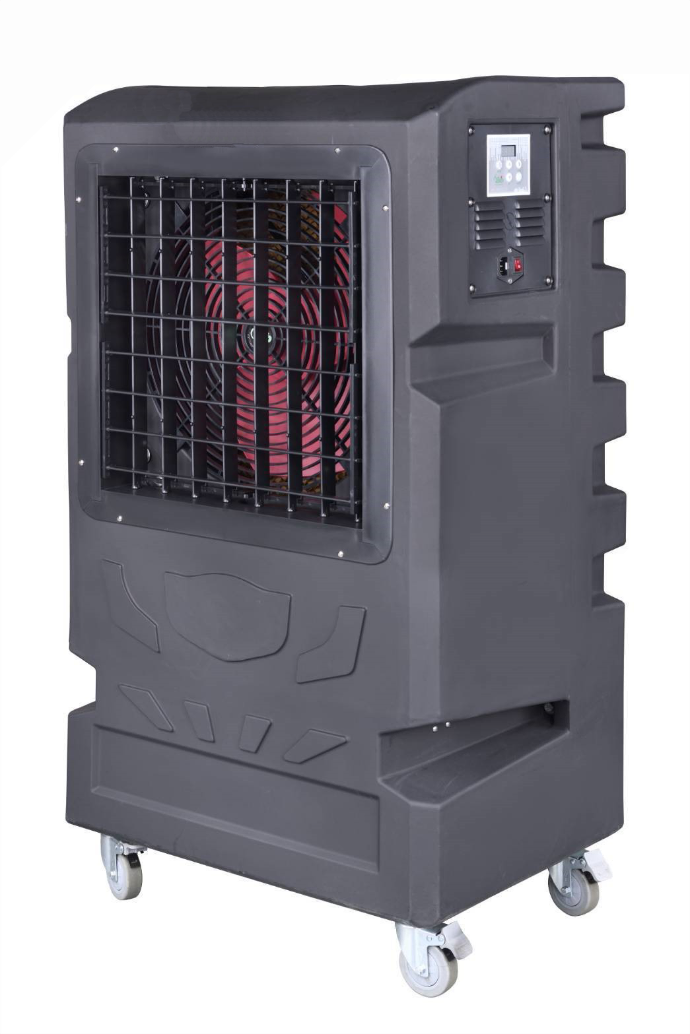

BW090M6-1-1/3HP
Voltage: 1 §, 110V, 50 / 60Hz
Blade: 16”3 Nylon 6 + Fiber
Inverter: 300 W
Motor: 1/3HP
Energy consumption: AC: 300 W/H ± 10%
Current (Max): AC: 4.6A±10%
Speed (Max): 1480 RPM (Variable)
Swinging shutters: Opcional
Cooling capacity: 969 s.f.
Airflow: 10000 CMH, 5890 CFM
Wind distance: Over 15m
Weight: 88 lbs
Water tank: 13 G
Dimensions: 47" x 26" x 19"
Differentiators
The Bluewind fan includes an innovative UVC light that sterilizes the water, an improvement over fans without this technology. (Optional feature, non-standard).
Low energy consumption when compared with traditional AC systems, helping reduce operative costs.
Ideal for varied industrial and commercial environments, where other cooling systems might not be efficient.
Produces a fresh breeze without generating water mist, which can lead to issues.
Features high capacity motors with a precise modulating controller for better adjustability.
With a more robust build than competitors, looks better and more aesthetic.
Includes a 5 year warranty for the motor and 3 years for electrical components.
Since 2024, a protective cover is included to protect from the elements, or during transport.
Competitors don't typically share all the tech specs like we do.
The Bluewind fans' motors are more powerful and superior to competitors.
Our fans have no big or flashy logos.
